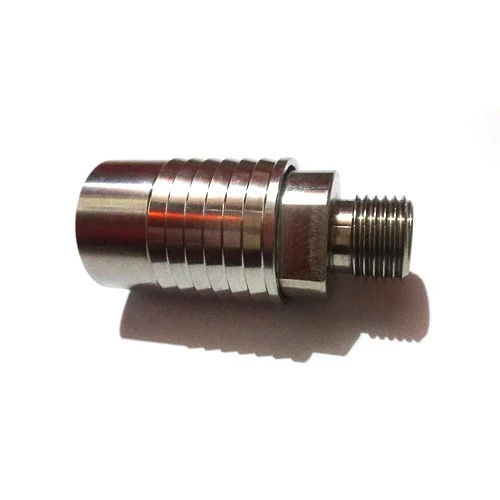

  Coupler Type SC (SM)

  del	Dimensions (mm)
  	Ls	DÆ	Hs	A	T	BsÆ
  20 SM	55.5	25.4	6Hex.19×21.9	13	1/4-19PT	7
  30 SM	56.5	25.4	6Hex.21×24.2	14	3/8-19PT	8
  40 SM	59.5	25.4	6Hex.23×26.6	16	1/2-14PT	13
  400 SM	63	35	6Hex.29×33.3	16	1/2-14PT	13
  600 SM	67	35	6Hex.32×37	18	3/4-14PT	19

  Get Best Price
•

  When plug and socket are connected

  Features Since the pressure loss is small, it is ideal for High viscosity fluids. Hose use, screw use, (male screw, female screw) and a variety of other types are available.

  Available Material : Steel, Brass, S.S. 304 & 316

  Get Best Price
•

  Coupler Type ST (TSF)

  odel	Dimensions (mm)
  	Ls	DÆ	Hp	A	T
  1TSF	25	17.5	6Hex.14×16.2	9	1/8-28PT
  2TSF	32	24	6Hex.19×21.9	13	1/4-19PT
  3TSF	35	28	6Hex.23×26.6	13	3/8-19PT
  4TSF	42	35	6Hex.29×33.5	17	1/2-14PT
  6TSF	48	45	6Hex.38×43.9	19	3/4-14PT
  8TSF	59	58	6Hex.50×57.7	22	1-11PT
  10TSF	64	69	62Æx2Hex.54	25	1.1/4-11pt
  12TSF	71	76	66Æx2Hex.58	25	1.1/2-11pt
  16TSF	80	95	82Æx2Hex.77	29	2-11pt

  Get Best Price
•

  S.S.Nipple

  eries	T	d	L1	L2	L3	H
  NI 1/8	1/8″BSP	5	16	6	7	16
  NI 1/4	1/4″BSP	8	16	6	8	16
  NI 3/8	3/8″BSP	9	16	6	9	19
  NI 1/2	1/2″BSP	9	16	6	9	22
