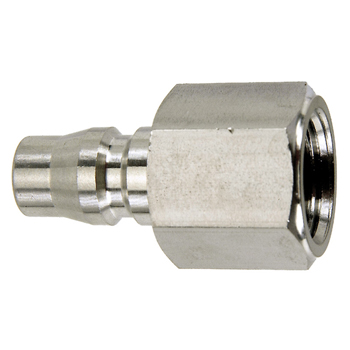

Coupler Type SC (PF)
|
del |
Dimensions (mm) |
|||||
| Lp | C | Hp | A | T | BpÆ | |
| 20 PF | 36 | 20 | 6Hex.17×19.6 | 13 | 1/4-19PT | 7.5 |
| 30 PF | 37 | 20 | 6Hex.21×24.2 | 14 | 3/8-19PT | 7.5 |
| 40 PF | 38 | 20 | 6Hex.29×33.3 | 15 | 1/2-14PT | 7.5 |
| 400 PF | 41 | 23 | 6Hex.29×33.3 | 15 | 1/2-14PT | 13 |
| 600 PF | 45 | 23 | 6Hex.35×40.4 | 17 | 3/4-14PT | 13 |
