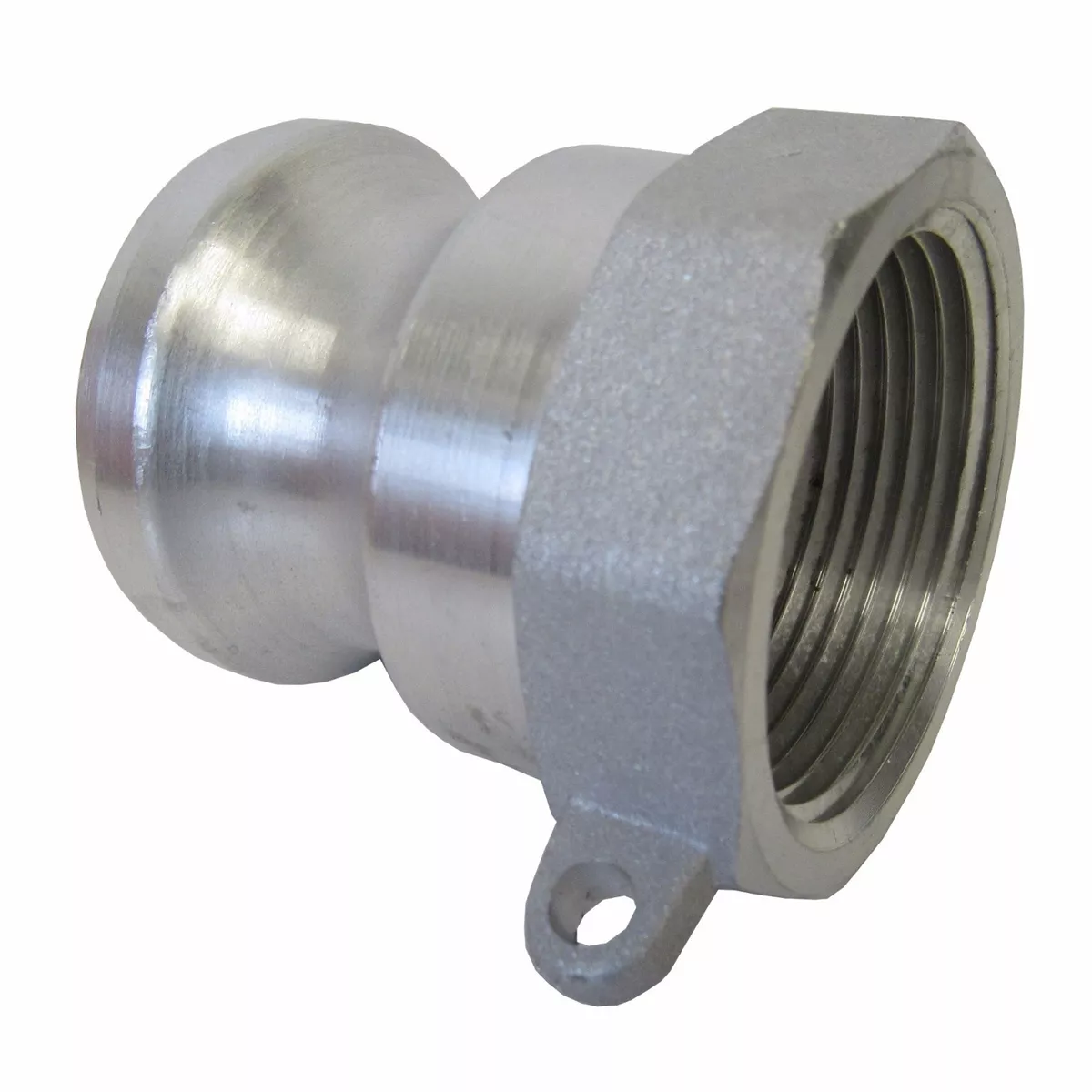

Adapters (Female Threaded)

del	Dimensions (mm)
del	Lp	C	Hp	A	T	BpÆ
1TPF	26	15.5	6Hex.14×16.2	9	1/8-28PT	4.5
2TPF	34	18	6Hex.17×19.6	13	1/4-19PT	6.5
3TPF	38	21	6Hex.21×24.2	13	3/8-19PT	10
4TPF	45	24	6Hex.29×33.5	17	1/2-14PT	13
6TPF	51	28	6Hex.35×40.4	19	3/4-14PT	17
8TPF	60	36	6Hex.41×47.3	22	1-11PT	26
10TPF	64	39	59Æx2Hex.54	25	1.1/4-11pt	32
12TPF	75	45	66Æx2Hex.58	25	1.1/2-11pt	38
16TPF	83	51	82Æx2Hex.77	29	2-11pt	50

odel	Dimensions (mm)
odel	Ls	DÆ	HsÆ	A	T	BsÆ
1TSM	30	17.5	6Hex.14×16.2	9	1/8-28PT	4.5
2TSM	42	24	6Hex.194×21.9	13	1/4-19PT	7
3TSM	46	28	6Hex.23×26.6	13	3/8-19PT	10
4TSM	56	35	6Hex.29×33.5	17	1/2-14PT	13
6TSM	65	45	6Hex.38×43.9	19	3/4-14PT	18
8TSM	76	58	6Hex.50×57.7	22	1-11PT	24
10TSM	86	69	62Æx2Hex.54	25	1.1/4-11pt	32
12TSM	95	76	66Æx2Hex.58	25	1.1/2-11pt	38
16TSM	108	95	82Æx2Hex.77	29	2-11pt	49
