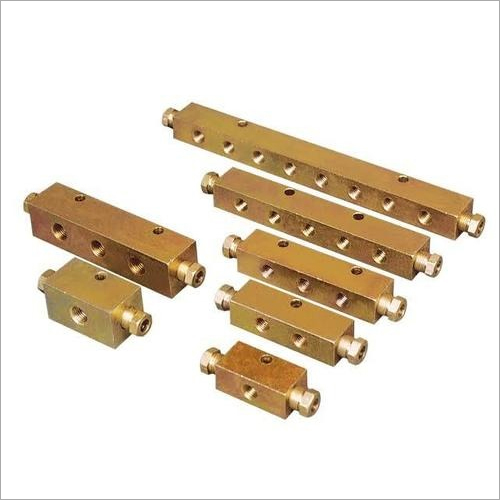

Junction Blocks
|
ODEL |
LENGTH |
CENTRE |
THREAD(T) |
. |
MODEL | LENGTH (L) |
CENTRE (C) |
THREAD(T) |
| JB1 | 51 | 37 | M8X1-5/16UNF | JB8 | 165 | 151 | M8X1-5/16UNF | |
| JB2 | 51 | 37 | M8X1-5/16UNF | JB1(3) | 65 | 50 | M10X1-1/8BSP | |
| JB3 | 70 | 56 | M8X1-5/16UNF | JB2(3) | 65 | 50 | M10X1-1/8BSP | |
| JB4 | 89 | 75 | M8X1-5/16UNF | JB3(3) | 90 | 75 | M10X1-1/8BSP | |
| JB5 | 108 | 94 | M8X1-5/16UNF | JB4(3) | 115 | 100 | M10X1-1/8BSP | |
| JB6 | 127 | 113 | M8X1-5/16UNF | JB5(3) | 140 | 125 | M10X1-1/8BSP | |
| JB7 | 146 | 132 | M8X1-5/16UNF | JB6(3) |
165 |
150 | M10X1-1/8BSP |
