  Nozzle Ball Valve for Gas

     Size: 1/4″, 3/8″, 1/2″
  Also Available In MaleThread

  Get Best Price
•

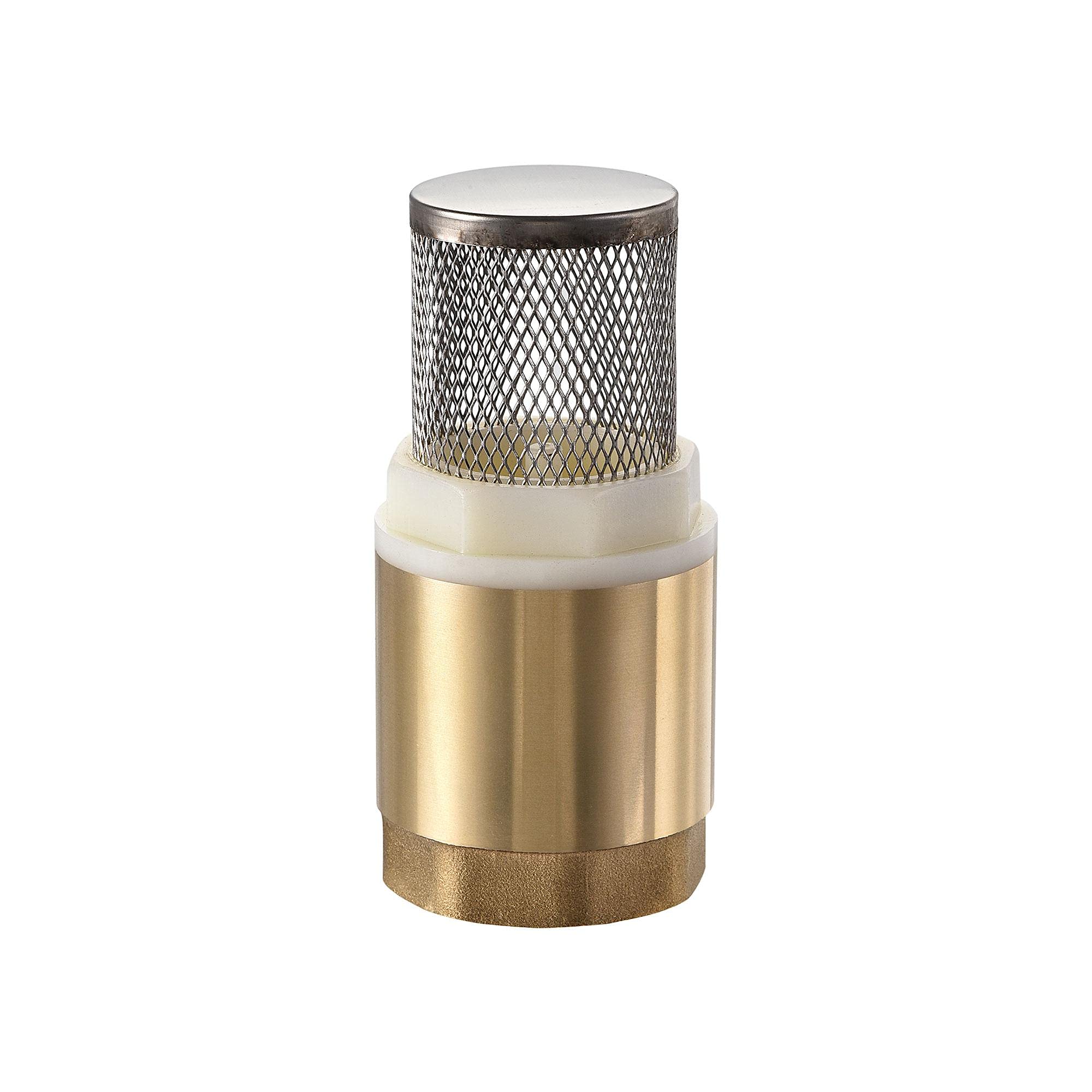

  Foot Valve

  Get Best Price
•

  “Y” Stainer

  Size Inch Bore Size MM W.P kg./cm² 1 1/2″ 15 20 2 3/4″ 20 20 3 1″ 25 20 4 1.1/4″ 32 20 5 1.1/2″ 40 20 6 2″ 50 20

  Get Best Price
•

  Forged Brass Ball Valve

  Features :

  Screwed Female ends to BSP Quarter Turn, Lever Operated . 100% PTFE Body Ring & Gland Packing. Size Range : 8mm to 100 mm Full Bore Design. Provided with Forged Brass Hand Chrome Plated Ball. Suitable for Industrial, Pneumatic, Domestic & Hydraulic Installations.

  Suitable for Water, Oil, Air & Gases. Test Pressure (Hydraulic) 40Kg/cm2

  Name of Part Material Standard 1 Body Forged Brass IS 6912 2 STEM Forged Brass IS 6912 3 Nut Brass – 4 Handle M.S. (Chrome Plated) Pvc covered Handle IS 2062 5 Gland Nut forged Brass IS 6912 6 Gland Packaging Ptef – 7 Ball Forged Brass IS 6912 8 Disc Ptfe – 9 Bonnet Forged Brass IS 6912 10 Seat Ptfe –

  Size Dimensions Inches MM A B C D 1/4 8 50 44 85 1/4 3/8 10 50 44 85 3/8 1/2 15 57 48 105 1/2 3/4 20 65 51 106 3/4 1 25 71 70 114 1 1.1/4 32 78 79 151 1.1/4 1.1/2 40 89 83 152 1.1/2 2 50 104 95 178 2 2.1/2 65 118 111 212 2.1/2 3 80 141 116 215 3 4 100 165 128 215 4
