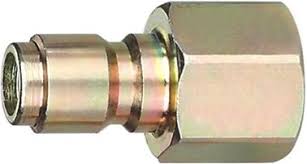

Coupler Type ST (TPF)
|
del |
Dimensions (mm) |
|||||
|
Lp |
C |
Hp |
A |
T |
BpÆ |
|
| 1TPF | 26 | 15.5 | 6Hex.14×16.2 | 9 | 1/8-28PT | 4.5 |
| 2TPF | 34 | 18 | 6Hex.17×19.6 | 13 | 1/4-19PT | 6.5 |
| 3TPF | 38 | 21 | 6Hex.21×24.2 | 13 | 3/8-19PT | 10 |
| 4TPF | 45 | 24 | 6Hex.29×33.5 | 17 | 1/2-14PT | 13 |
| 6TPF | 51 | 28 | 6Hex.35×40.4 | 19 | 3/4-14PT | 17 |
| 8TPF | 60 | 36 | 6Hex.41×47.3 | 22 | 1-11PT | 26 |
| 10TPF | 64 | 39 | 59Æx2Hex.54 | 25 | 1.1/4-11pt | 32 |
| 12TPF | 75 | 45 | 66Æx2Hex.58 | 25 | 1.1/2-11pt | 38 |
| 16TPF | 83 | 51 | 82Æx2Hex.77 | 29 | 2-11pt | 50 |
