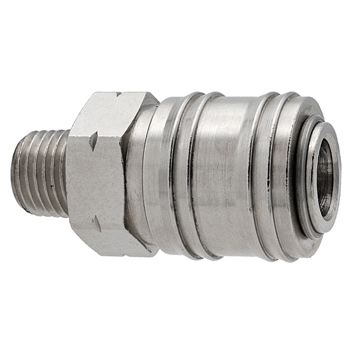

Coupler Type SC (SM)

del	Dimensions (mm)
del	Ls	DÆ	Hs	A	T	BsÆ
20 SM	55.5	25.4	6Hex.19×21.9	13	1/4-19PT	7
30 SM	56.5	25.4	6Hex.21×24.2	14	3/8-19PT	8
40 SM	59.5	25.4	6Hex.23×26.6	16	1/2-14PT	13
400 SM	63	35	6Hex.29×33.3	16	1/2-14PT	13
600 SM	67	35	6Hex.32×37	18	3/4-14PT	19

del	Dimensions (mm)
del	Lp	C	Hp	A	T	BpÆ
1TPM	32	15.5	6Hex.12×13.8	9	1/8-28PT	4.5
2TPM	38	18	6Hex.17×19.6	13	1/4-19PT	6.5
3TPM	43	21	6Hex.19×21.9	13	3/8-19PT	10
4TPM	52	24	6Hex.23×26.6	17	1/2-14PT	13
6TPM	59	28	6Hex.32×37	19	3/4-14PT	17
8TPM	73	36	6Hex.41×47.3	22	1-11PT	24
10TPM	83	39	59Æx2Hex.54	23	1.1/4-11pt	32
12TPM	93	45	66Æx2Hex.58	26	1.1/2-11pt	38
16TPM	102	51	82Æx2Hex.77	27	2-11pt	50
