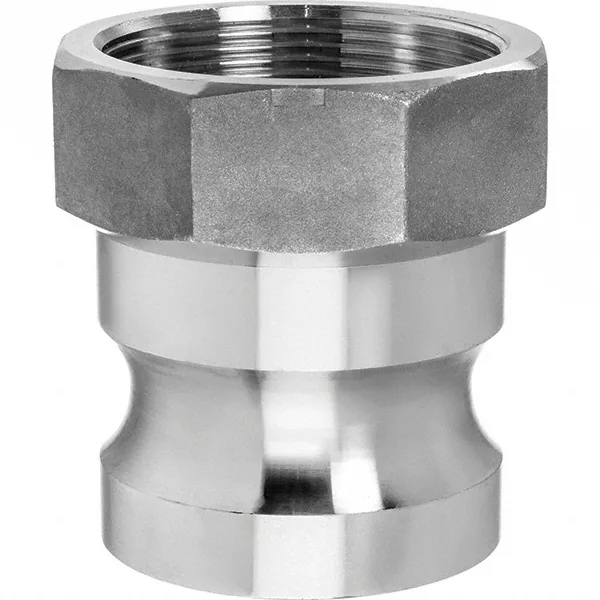

Coupler Type DC (p)
|
DIMENSIONS |
||||||||
|
Model |
Type |
Size |
Max. Working Pressure PSI |
Dimensions (mm) |
||||
|
Lp |
C |
Hp |
A |
T | ||||
|
1P |
QRC-DC1 | 1/8” | 4000 | 29 | 19 | 6Hex.14×16.2 | 11 | 1/8-28PT |
|
2P |
QRC-DC2 | 1/4” | 4000 | 36 | 22 | 6Hex.17×19.6 | 13 | 1/4-19PT |
|
3P |
QRC-DC3 | 3/8” | 4000 | 40 | 25 | 6Hex.21×24.2 | 13 | 3/8-19PT |
|
4P |
QRC-DC4 | 1/2” | 3500 | 44 | 28 | 6Hex.29×33.3 | 15 | 1/2-14PT |
|
6P |
QRC-DC5 | 3/4” | 3000 | 52 | 36 | 6Hex.35×40.4 | 17 | 3/4-14PT |
|
8P |
QRC-DC6 | 1” | 2500 | 62 | 40 | 6Hex.41×47.4 | 20 | 1-11PT |
|
10P |
QRC-DC7 | 1/4” | 2500 | 70 | 45 | 59 Æ x2Hex.54 | 24 | 1.1/4-11PT |
|
12P |
QRC-DC8 | 1/2” | 2000 | 75 | 49 | 69 Æ x2Hex.63 | 24 | 1.1/2-11PT |
|
16P |
QRC-DC9 | 2” | 1500 | 80 | 52 | 84 Æ x2Hex.77 | 27 | 2-11PT |
