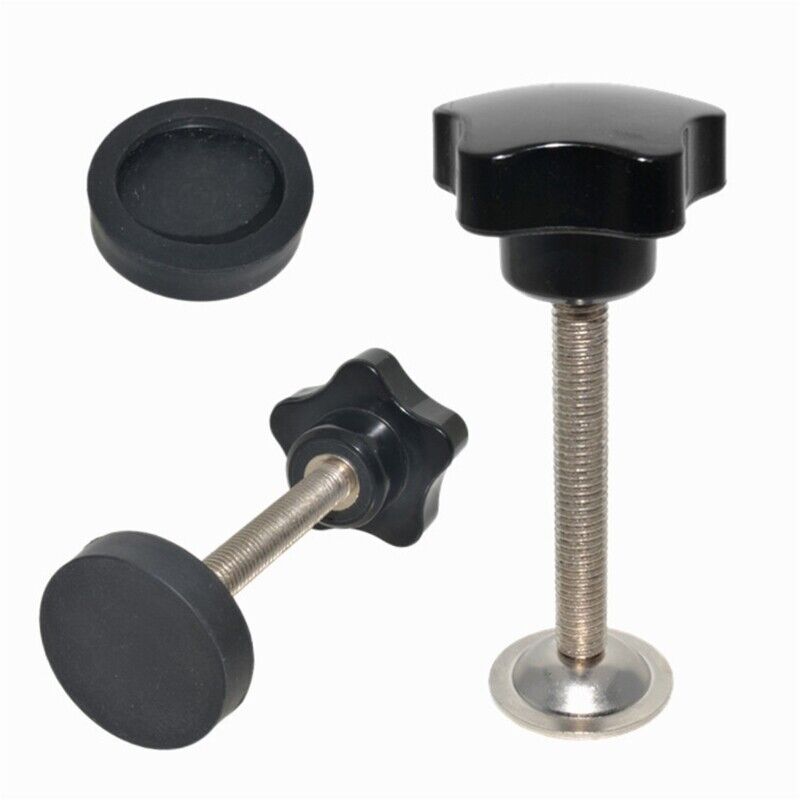

Clamp Knobs
| No. | DIMENSION | PLASTIC THREAD | BRASS INSERT THREAD | M.S.STUD THREAD |
||||||||||
| D | H | d1 | 1/4″ | 5/16″ | 3/8″ | 1/2″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ | 1/4″ | 5/16″ | 3/8″ | |
| C 1 | 28 | 20 | 16 | 06 | 08 | 06 | 08 | 16 | 08 | |||||
| C 2 | 44 | 25 | 20 | 08 | 10 | 12 | 08 | 10 | 12 | 08 | 10 | |||
| C 3 | 57 | 32 | 25 | 10 | 12 | 10 | 12 | 10 | 12 | |||||
